Logistics Resources: Vehicles for Every Freight Need

Explore Our Fleet: Specialized Trailers and Containers for Every Need

At Kell-Maac, we offer a comprehensive range of equipment to meet the diverse needs of your logistics. Below, you’ll find detailed specifications for our fleet, categorized into Trailers and Containers—each designed to provide secure, efficient, and reliable transportation solutions for your cargo.

Trailers
Containers

Maximum Legal Acceptable Dimensions	Front Deck	Rear Deck	Maximum Legal Acceptable Weight
Length: 29 feet	Length: 10 feet	Length: 9 feet	45,000 lbs
Width: 8.5 feet	Width: 8.5 feet	Width: 8.5 feet
Height: 11.5 feet	Height: 8.5 feet	Height: 10 feet

Maximum Legal Acceptable Dimensions	Front Deck	Rear Deck	Maximum Legal Acceptable Weight
Length: 29 feet	Length: 10 feet	Length: 9 feet	45,000 lbs
Width: 8.5 feet	Width: 8.5 feet	Width: 8.5 feet
Height: 11.5 feet	Height: 8.5 feet	Height: 10 feet

Maximum Legal Acceptable Dimensions	Maximum Legal Acceptable Weights
Length: 48 feet	48,000 lbs
Width: 8.5 feet
Height: 8.5 feet

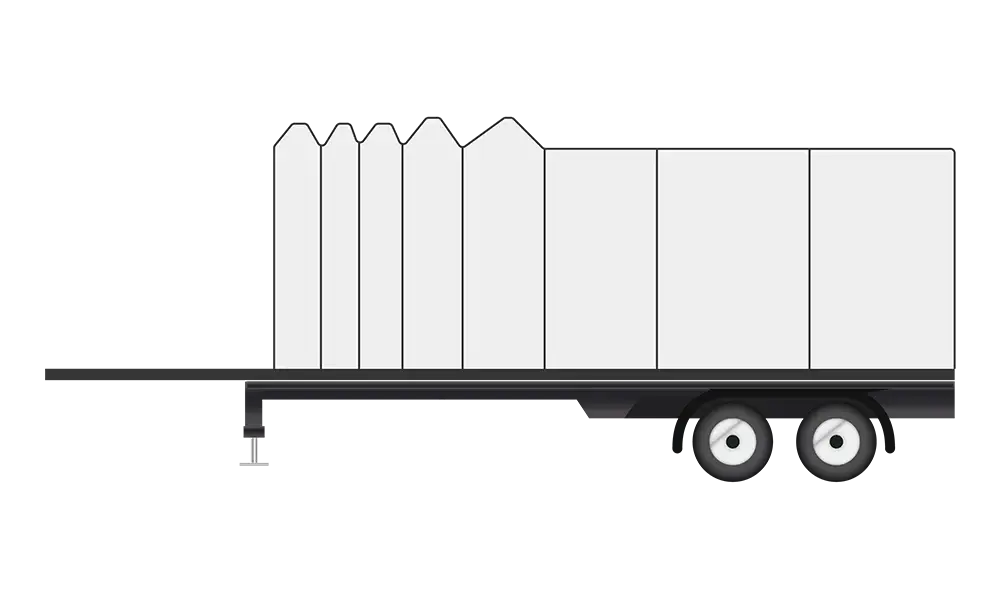

Flatbed Conestoga Length Options	Flatbed Conestoga Maximum Height	Flatbed Conestoga Maximum Width	Flatbed Conestoga Maximum Capacity
48 feet to 53 feet	8 feet(96 inches)	8 feet 6 inches(102”)	44,000 lbs

Maximum Stepdeck Trailer Length	Maximum Stepdeck Trailer Width	Maximum Legal Freight Height
48 feet to 53 feet	8.5 feet	10 feet

Maximum Sidekit Trailer Length	Maximum Sidekit Trailer Width	Maximum Sidekit Trailer Height
48 feet to 53 feet	8.2 feet	8.6 feet

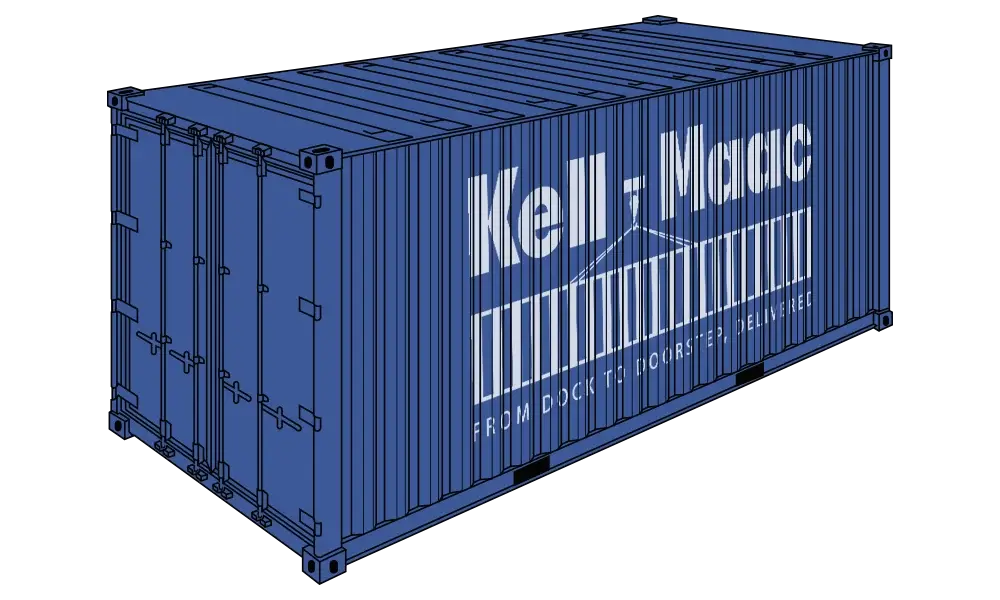

	Inside Dimensions	Door Openings	Weights	Capacity
8’6” high	Length 5,900 mm 19′ 4(1/4)” feet	Width 2,340 mm 7′ 8(1/8)” feet	Max. Gross 32,500 kg 71,650 lbs	33.2 m3 1,172 ft³
	Width 2,352 mm 7′ 8(5/8)” feet	Height 2,292 mm 7′ 6(1/4)” feet	Tare 2,300 kg 5,071 lbs
	Height 2,393 mm 7′ 10(1/4)” feet		Max. Payload 30,200 kg 66,579 lbs

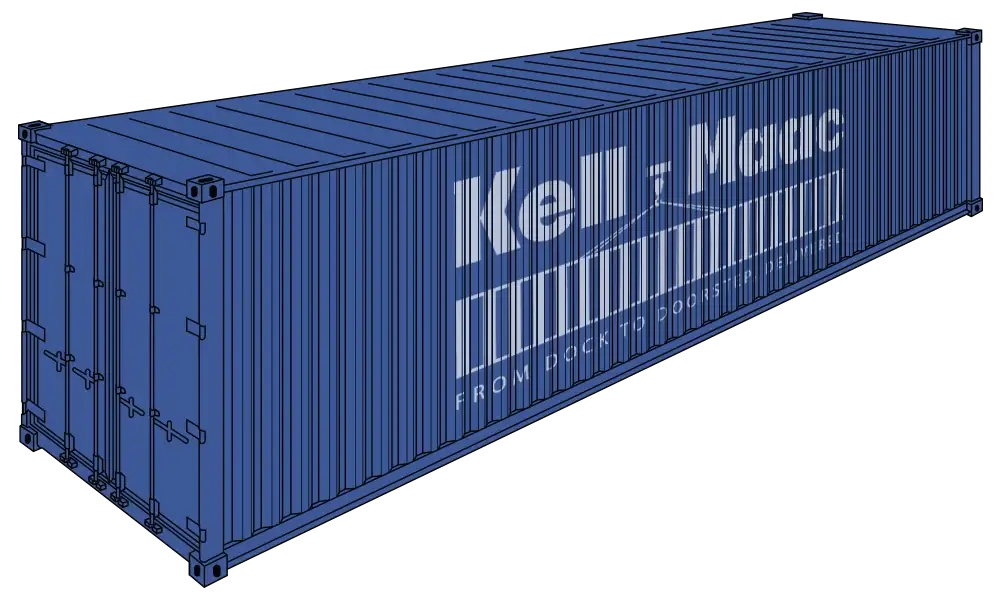

	Inside Dimensions	Door Openings	Weights	Capacity
8′ 6″ high	Length 12,032 mm 39′ 5(5/8)” feet	Width 2,340 mm 7′ 8(1/8)” feet	Max. Gross 32,500 kg 71,650 lbs	67.7 m3 2391 ft³
	Width 2,352 mm 7′ 8(5/8)” feet	Height 2,292 mm 7′ 6(1/4)” feet	Tare 3,700 kg 8,157 lbs
	Height 2,395 mm 7′ 10(¼)” feet		Max. Payload 28,800 kg 63,493 lbs

	Inside Dimensions	Door Openings	Weights	Capacity
9′ 6″ high	Length 12,032 mm 39′ 5(5/8)” feet	Width 2,340 mm 7′ 8(1/8)” feet	Max. Gross 32,500 kg 71,650 lbs	76.3 m3 2,695 ft³
	Width 2,432 mm 7′ 11(3/4)” feet	Height 2,597 mm 8′ 6(1/4)” feet	Tare 3,850 kg 8,488 lbs
	Height 2,700 mm 8′ 10(1/4)” feet		Max. Payload 28,650 kg 63,162 lbs

	Inside Dimensions	Door Openings	Weights	Capacity
9′ 6″ high	Length 13,556 mm 44′ 5(5/8)” feet	Width 2,340 mm 7′ 8(1/8)” feet	Max. Gross 32,500 kg 71,650 lbs 32,500 kg 71,650 lbs	86.0 m3 3,037 ft³ 86.0 m3 3,037 ft³
	Width 2,352 mm 7′ 8(5/8)” feet	Height 2,597 mm 8′ 61/4)” feet	Tare 4,700 kg 10,362 lbs 5,050 kg 11,133 lbs
	Height 2,700 mm 8′ 10(1/4)” feet		Max. Payload 27,800 kg 61,288 lbs 27,450 kg 60,517 lbs

	Inside Dimensions	Weights	Capacity
8′ 6″ high	Length 5,895 mm 19′ 4(1/8)” feet	Max. Gross 32,500 kg 71,650 lbs 32,500 kg 71,650 lbs	32.5 m3 1,148 ft³ 32.7 m3 1,155 ft³
	Width 2,350 mm 7′ 8(1/2)” feet	Tare 2,450 kg 5,402 lbs 2,500 kg 5,512 lbs
	Middle Height 2,380 mm 7′ 9(5/8)” feet 2,376 mm 7′ 9(1/2)” feet	Max. Payload 30,050 kg 66,248 lbs 30,000 kg 66,138 lbs
	Side Height 2,340 mm 7′ 8(1/8)” feet 2,346 mm 7′ 8(3/8)” feet

	Inside Dimensions	Weights	Capacity
8′ 6″ high	Length 12,030 mm 39′ 5(5/8)” feet 12,029 mm 39′ 5(1/2)” feet	Max. Gross 30,480 kg 67,196 lbs 32,500 kg 71,650 lbs	66.4 m3 2,345 ft³ 66.5 m3 2,348 ft³
	Width 2,350 mm 7′ 8(1/2)” feet	Tare 3,850 kg 8,488 lbs 4,050 kg 8,929 lbs
	Middle Height 2,377 mm 7′ 9(1/2)” feet 2,380 mm 7′ 9(5/8)” feet	Max. Payload 26,630 kg 58,708 lbs 28,450 kg 62,721 lbs
	Side Height 2,347 mm 7′ 8(3/8)” feet 2,346 mm 7′ 8(3/8)” feet

	Inside Dimensions	Weights
8′ 6″ high	Length Between Corner Posts 5,612 mm 18′ 4(7/8)” feet 5,638 mm 18′ 6″ feet	Max. Gross 34,000 kg 74,957 lbs 40,000 kg 88,184 lbs 45,000 kg 99,207 lbs
	Width Between Corner Posts 2,227 mm 7′ 3(5/8)” feet	Tare 2,740 kg 6,041 lbs 2,940 kg 6,482 lbs 2,900 kg 6,393 lbs
	Width Over Floor/Bottom Side Rails 2,210 mm 7′ 3″ feet 2,208 mm 7′ 2(7/8)” feet 2,194 mm 7′ 2(3/8)” feet	Max. Payload 31,260 kg 68,916 lbs 37,060 kg 81,702 lbs 42,100 kg 92,814 lbs
	Height Floor to Top Face(Inside Height) 2,219 mm 7′ 3(3/8)” feet 2,235 mm 7′ 4″ feet 2,233 mm 7′ 3(7/8)” feet
	Height of Bottom 370 mm 1′ 2(1/2)” feet

	Inside Dimensions	Weights
9′ 6″ high	Length Between Corner Posts 11,652 mm 38′ 2(3/4)” feet	Max. Gross 50,000 kg 110,230 lbs 55,000 kg 121,253 lbs 60,000 kg 132,276 lbs
	Width Between Corner Posts 2,224 mm 7′ 3(1/2)” feet 2,226 mm 7′ 3(5/8)” feet 2,178 mm 7′ 1(3/4)” feet 2,148 mm 7′ (1/2)” feet	Tare 5,950 kg 13,117 lbs 5,900 kg 13,007 lbs 5,850 kg 12,897 lbs 5,800 kg 12,787 lbs
	Width Over Floor/Bottom Side Rails 2,368 mm 7′ 9(1/4)” feet 2,347 mm 7′ 8(3/8)” feet 2,370 mm 7′ 9(1/4)” feet 2,358 mm 7′ 8(3/4)” feet	Max. Payload 44,050 kg 97,113 lbs 49,100 kg 108,246 lbs 49,150 kg 108,356 lbs 54,200 kg 119,489 lbs
	Height Floor to Top Face(Inside Height) 2,248 mm 7′ 4(1/2)” feet 2,264 mm 7′ 5(1/8)” feet 2,258 mm 7′ 4(7/8)” feet 2,264 mm 7′ 5(1/8)” feet
	Height of Bottom 648 mm 2′ 1(1/2)” feet

	Inside Dimensions	Weights
20′ Flat/Platform with flushfolding end walls and softwood floor 1′ 1(1/4)” high	Length 6,058 mm 20′ feet	Max. Gross 34,000 kg 74,957 lbs 40,000 kg 88,184 lbs 45,000 kg 99,207 lbs
	Width 2,438 mm 8′ feet	Tare 2,740 kg 6,041 lbs 2,940 kg 6,482 lbs 2,900 kg 6,393 lbs
	Height of Bottom 370 mm 1′ 2(1/2)” feet	Max. Payload 31,260 kg 68,916 lbs 37,060 kg 81,702 lbs 42,100 kg 92,814 lbs

	Inside Dimensions	Weights
40′ Flat/Platform with flushfolding end walls and softwood floor 2″ high	Length 12,192 mm 40′ feet	Max. Gross 50,000 kg 110,230 lbs 55,000 kg 121,253 lbs 60,000 kg 132,276 lbs
	Width 2,245 mm 7′ 4(3/8)” feet	Tare 5,950 kg 13,117 lbs 5,900 kg 13,007 lbs 5,850 kg 12,897 lbs 5,800 kg 12,787 lbs
	Height of Bottom 648 mm 2′ 1(1/2)” feet	Max. Payload 44,050 kg 97,113 lbs 49,100 kg 108,246 lbs 49,150 kg 108,356 lbs 54,200 kg 119,489 lbs

Need more information on our specialized fleet? Contact Kell-Maac today to learn more about how we can provide the right equipment for your specific logistics needs. Schedule a Meeting
